GDTS

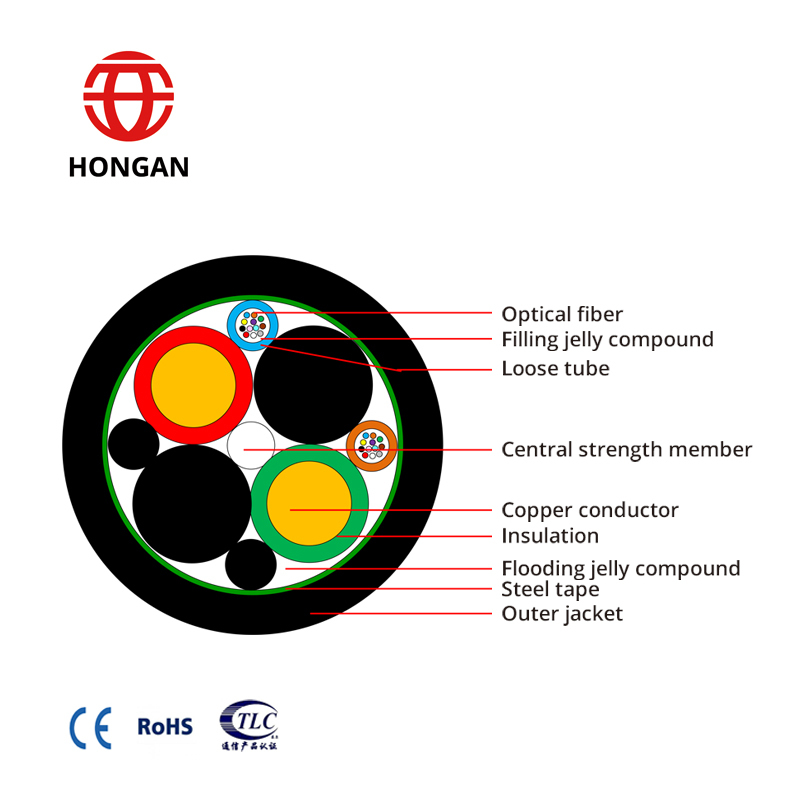

Product Structure:
Product Description:
GDTS(Loose tubestranding, Metal strength member, Flooding jelly compound, Steel-polyethyleneadhesive sheath)
Standards:
YD/T2159-2010 Opto electric composite cablefor telecommunications
Technical Parameters(Typical Value):
Fiber Count | Conductor Specifications | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
24 | 2×1. 0 | 1+6 | 12.4 | 182 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×1. 5 | 1+6 | 14.0 | 227 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×2.5 | 1+4 | 13.8 | 269 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×4.0 | 1+4 | 14.9 | 331 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×6. 0 | 1+4 | 16. 3 | 414 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×10. 0 | 1+4 | 19. 6 | 619 | 600 | 1500 | 300 | 1000 | 10D | 20D |
24 | 2×16. 0 | 1+4 | 22.2 | 844 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
