Wild Combat Cable GYFJZU

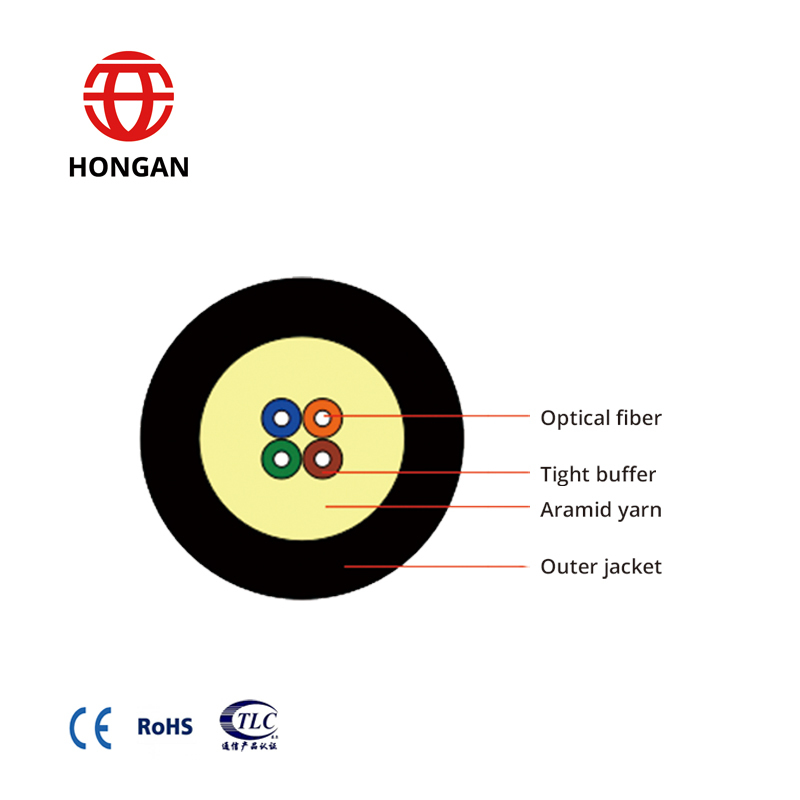

Product Structure:
Product Description:
GYFJZU(Tightbuffer fiber structure, Aramid yarn strengh member, TPU outer sheath)
Standards:
GJB1428B-2009 Cable general specification
Technical Parameters(Typical Value):
Fiber Count | Specifications (mm) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
1 | 3.0 | 800 | 400 | 200 | 1000 | 10D | 20D |
2 | 5. 2 | 800 | 400 | 200 | 1000 | 10D | 20D |
4 | 5. 2 | 800 | 400 | 200 | 1000 | 10D | 20D |
6 | 6. 0 | 800 | 400 | 200 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
