GJAFJH

GJAFJH

share
$0.00
  • Detail
  • Parameters

GJAFJH

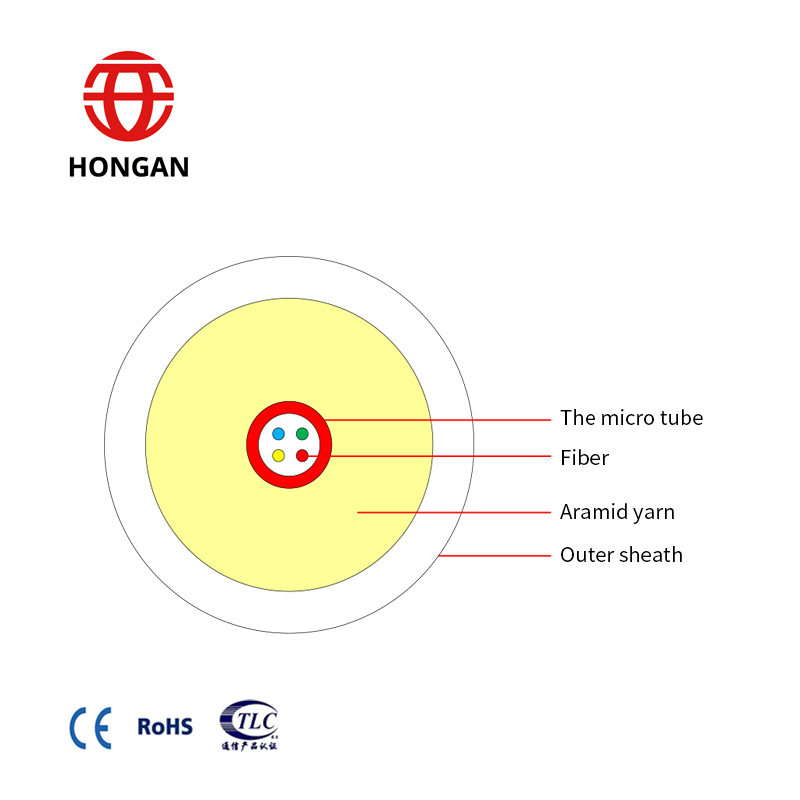

Product Structure：



Product Description:

GJAFJH (Low smoke halogen - micro tube structure, Aramid yarn strengh member, LSZH sheath)


Standards:

YD/T 1258. 4-2005 Indoor fiber optical cable Dual core cable


Technical Parameters(Typical Value):


Fiber Count
The micro tube diameter
(mm)
Diameter
(mm)
Weight
(kg/km)
Tensile(N)
Long    Short
term    term
Crush(N)
Long    Short
term    term
Bending Radius(mm)
Static  Dynamic



1
0.95
4.0
14
100
250
300
1000
10D
20D
2
0.95
4.0
14
100
250
300
1000
10D
20D
4
0.95
4.0
14
100
250
300
1000
10D
20D


Note  1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;

3.PVC and other material can be used as sheath according to the customer’s demands.
