FTTX Drop Cable Product
Applications:
The kind of cable is suitable for fiber to the home.
Characteristics:
Small diameter, excellent performance of softness and high strength.
Operating Temperature:-20℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | 50μm(OM3) 850nm/1300nm | SM 1310nm/1550nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 3.5/1. 5 | 0. 4/0. 3 |
Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 3.0/1. 0 | 0. 38/0. 25 |
Note:Other types of fiber can be provided according to the customer’s demands.
GJXFH

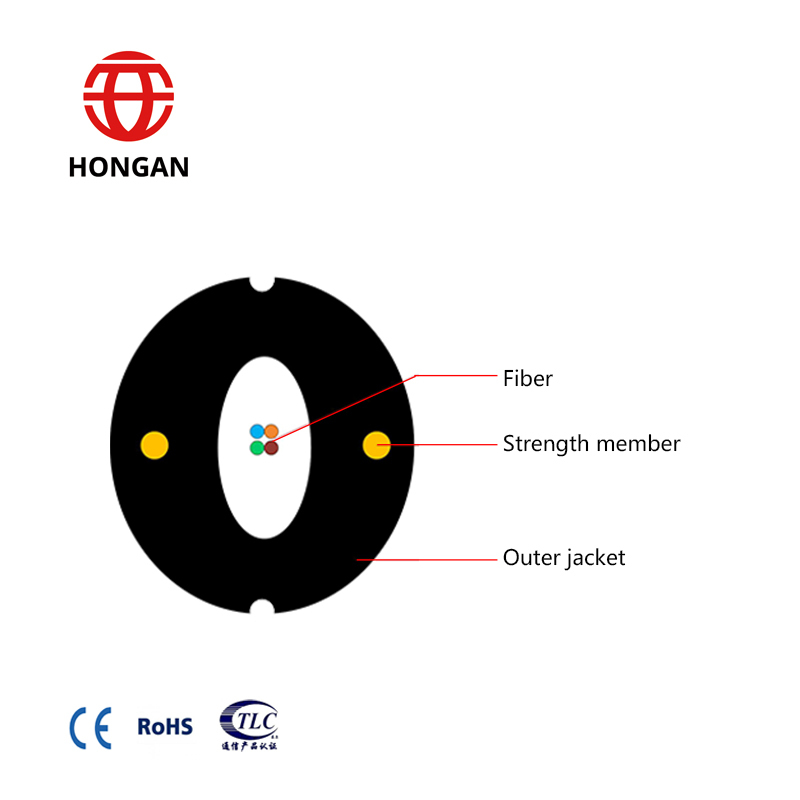

Product Structure:
Product Description:
GJXFH（Non-metal strength member, LSZH sheath）
Standards:
YD/T 1258. 4-2005 The series of indoor optical fiber cables
Technical Parameters(Typical Value):
Fiber Count | FRP Diameter(mm) | Diameter(mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
1、2、4 | 0.5 | 3.3 | 10.2 | 40 | 80 | 500 | 1000 | 15 | 30 |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
