Six types of non-shielded communication credit horizontal pair symmetric cable series

Applications:

10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T、1000Base-TX、10GBase-T

Characteristics:


Physical/electrical characteristics



Propagation delay difference (max)
45ns/100m
Characteristic impedance
4-100MHz   100±15Ω
Working capacitance (max)
5.6nF/100m
DC resistance (max)
9.5Ω/100m at 20℃；
Dielectric strength between conductors (min)
2.5kV/2s
Allowable bending radius
Not less than 8 times the outer diameter of the cable



Transmission performance








Frequency
(MHz)
Attenuation
(Max)
(dB/100m)
NEXT
(Min)
(dB/100m)
PSNEXT
（Min）
(dB/100m)
ELFEXT
（Min）
(dB/100m)
PSELFEXT
（Min）
(dB/100m)
RL
（Min）
(dB)
Phase velocity
（Min）
(m./s)
Phase delay
(Max)
(ns/100m)
4
3.8
66.3
63.3
56
53
23
0.604c
552
8
5.3
61.8
58.8
49.9
46.9
24.5
0.610c
547
10
5.9
60.3
57.3
48
45
25
0.612c
545
16
7.5
57.2
54.2
43.9
40.9
25
0.614c
543
20
8.4
55.8
52.8
42
39
25
0.615c
542
25
9.4
54.3
51.3
40
37
24.3
0.616c
541
31.25
10.5
52.9
49.9
38.1
35.1
23.6
0.617c
540
62.5
15.0
48.4
45.4
32.1
29.1
21.5
0.619c
539
100
19.1
45.3
42.3
28
25
20.1
0.620c
538
200
27.6
40.8
37.8
22
19
18
0.622c
537
250
31.1
39.3
36.3
20
17
17.3
0.622c
536




Operating Temperature:-20℃～﹢60℃





Indoor six types of non-shielded digital communication credit horizontal pair symmetric cable

UTP CAT6   (HSYV6)

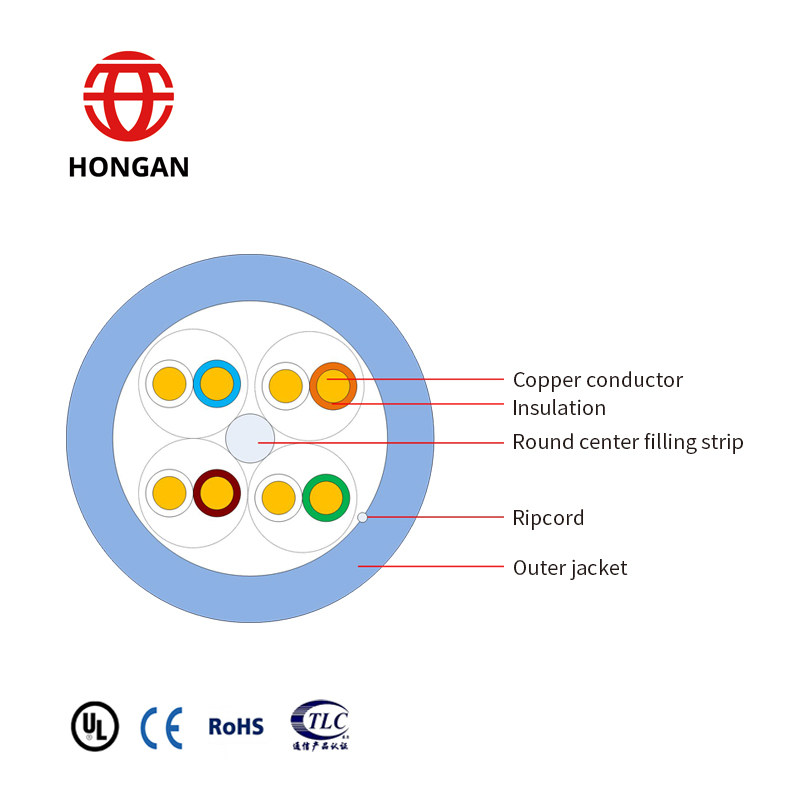

Product Structure:

HSYV-6 英文版-1.jpg



Product Description:

UTP CAT6 HSYV6 (Category 6, PE Insulation, PVC sheath)


Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communications

Structure Parameters


Type
Wire Gauge
Logarithm
Diameter(mm)
HSYV6
23AWG
4
6.0


(Remarks: 1. Sheath materials such as LSZH can be used according to customers' needs)









Price
$0.00
