The Duct And Non Self-Supporting Optical Cable Product
Applications:
The kind of cable is suitable for duct, aerial non Self-Supporting, groove, tunnels, leading in and cable trench, etc.
Characteristics:
Excellent performance of water-blocking;
Excellent performance of tensile properties and temperature.
Operating Temperature:-40℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | G. 652 1310nm/1550nm | G. 655 1550nm/1625nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
Attenuation Of Typical Value (dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
Note:Other types of fiber can be provided according to the customer’s demands.
GYXTP

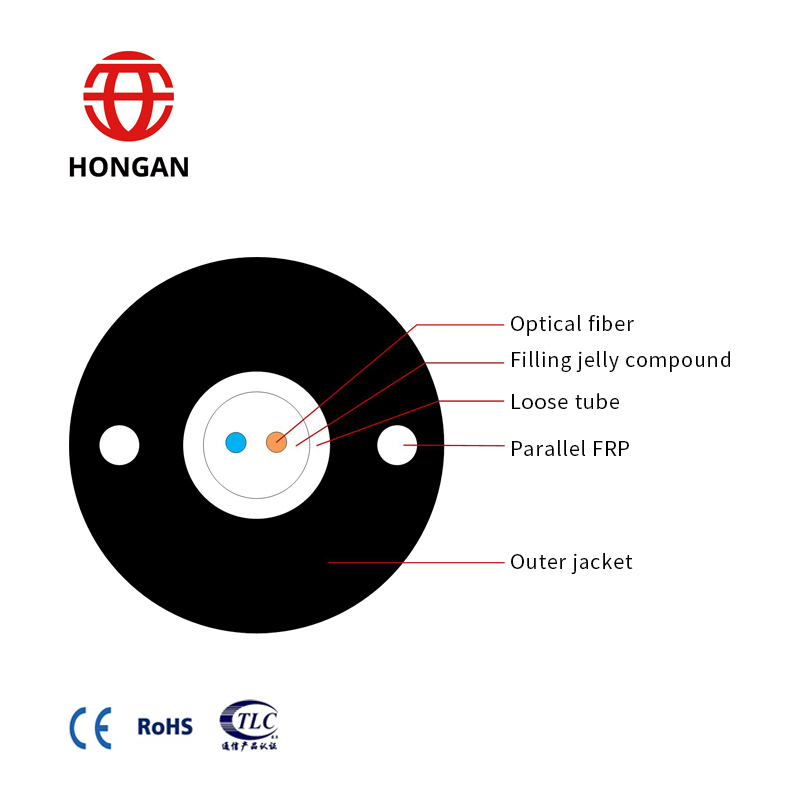

Product Structure:
Product Description:
GYXTP（Structure with central tube ,PE sheath with FRP）
Standards:
YD/T 769-2018 Central gel-filled loose tube optical fibre cables for outdoor application for telecommunication
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter(mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
1、2、4 | Central tube | 4.0 | 13 | 40 | 80 | 250 | 500 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
