S/FTP HSYPVP-7 4X2X0.60P
S/FTP HSYPVP-7 4X2X0.60P
- Detail
- Parameters
Seven categoriesHorizontal twisted symmetrical cable product series for digital communication
Product application:
1. It is generally used in scenarios with high-speed transmission and high bandwidth requirements, such as video conferencing,Streaming mediaBroadcast, network-based voice calls,Grid calculationAnd in the scenario of the storage network.
2. Adapt to 10/100/1000/10GBASE-TXEthernetData transmission is widely used in high-demand indoors.Horizontal wiring.。
3. The super shielding function of seven types of wires is very suitable for shielding the wiring of the computer room and the security network.
Product features:
1. TheIt provides 600MHz bandwidth within a distance of 90 meters, and the typical application rate is 10Gbps.
2. InS/FTP is designed for an optimized Class 7 cable structure. The product is used in a shielding security system with extremely high requirements for electromagnetic interference, indoor horizontal workspace wiring and indoor LAN wiring.
3. ,The diameter of the product is 23AWGHigh-quality oxygen-free copper is used as the transmission conductor. PhysicsFoam insulation greatly improves the transmission capacity of a single conductor, and the overall electrical transmission performance of the cable is reliable and excellent, reaching and exceeding seven types of system indicators.
4. InIn 4 pairsTwisted pairThe thickness of the overall longitudinal envelope of the line is 0.07Mm single-sided aluminum foil plus tin-plated copper wire braided mesh shielding layer, compared with non-shielded cable, under the premise of ensuring the same transmission bandwidth level, the anti-shielding interference ability of S/FTP shielded cable has been improved by 25dB, which can reach 90dB, which can be used for use environments that require extremely high anti-el The shielding system has extremely high signal shielding and confidentiality.。
Operating temperature:-20℃～+60℃
Transmission performance：
1. ThePhysical/electrical characteristics (Physical/electrical characteristics）：
Physical/Electrical Characteristics | |||
Transmission delay difference (maximum) | 45ns/100m | ||
Working capacitance (maximum) | 5.6nF/100m | DC resistance (maximum) | 9.5Ω/100m at 20℃; |
Dielectric strength between conductors (minimum) | 1kV/1min | Allow bending radius | Not less than 8 times the outer diameter of the cable |
2. InPerformance requirements
Frequency Frequency (MHz) | Weaken Attenuation (Max) (dB/100m) | Proximal stringSound attenuation (Min) (dB/100m) | Proximal stringSound attenuationPower and PSNEXT (Min) (dB/100m) | Far-end stringSound attenuationELFEXT （Min) (dB/100m) | Far awayEnd stringSound attenuationPower and Adobe PhotoshopELFEXT (Min) (dB/100m) | Return loss. RL (Min) (dB) | Transmission phase speed Phase velocity (Min) (M./s) | Delayed phase Phase delay (Medium sizeAx) (Ns/100m) |
4 | 3.7 | 78 | 75 | 78 | 75 | 23 | 0.604c | 552 |
8 | 5.2 | 78 | 75 | 77.2 | 74.2 | 24.5 | 0.610c | 547 |
10 | 5.9 | 78 | 75 | 75.3 | 72.3 | 25 | 0.612Centigrade | 545 |
16 | 7.4 | 78 | 75 | 72.1 | 68.2 | 25 | 0.614c | 543 |
20 | 8.3 | 78 | 75 | 69.3 | 66.3 | 25 | 0.615c | 542 |
25 | 9.3 | 78 | 75 | 67.3 | 64.3 | 24.3 | 0.616c | 541 |
31.25 | 10.4 | 78 | 75 | 65.4 | 62.4 | 23.6 | 0.617c | 540 |
62.5 | 14.9 | 75.5 | 72.5 | 59.4 | 56.4 | 21.5 | 0.619c | 539 |
100 | 19.0 | 72.4 | 69.4 | 55.3 | 52.3 | 20.1 | 0.620c | 538 |
200 | 27.5 | 67.9 | 64.9 | 49.3 | 46.3 | 18 | 0.622c | 537 |
250 | 31.0 | 66.4 | 63.4 | 47.3 | 44.3 | 17.3 | 0.622Centigrade | 536 |
300 | 34.2 | 65.2 | 62.2 | 48.5 | 42.8 | 17.3 | 0.622c | 536 |
400 | 40.0 | 63.4 | 60.4 | 43.3 | 40.3 | 17.3 | 0.623c | 536 |
500 | 45.3 | 61.9 | 58.9 | 41.3 | 38.3 | 17.3 | 0.623c | 536 |
600 | 50.1 | 60.7 | 57.7 | 39.7 | 36.7 | 17.3 | 0.623c | 535 |
S/FTP HSYPVP-7 4X2X0.60P

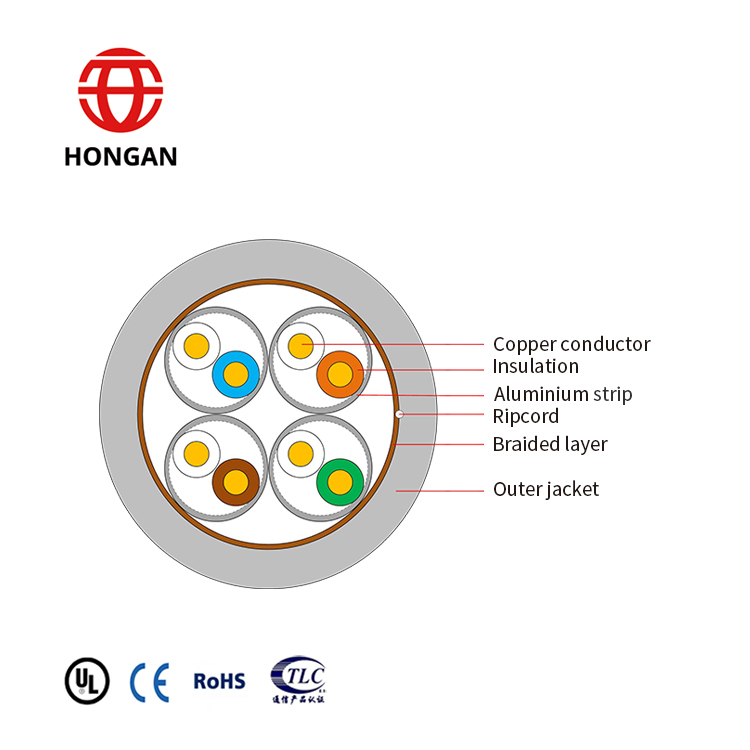

Product structure diagram:
Product description:
HSYPVP7( Advanced physical foaming technology is used to produce insulated single wires. After twisting, a line pair is formed, andS/FTP is a wire-to-wire shielding method as a shielding layer, and a layer of PVC sheath is extruded on the outer layer.）
Technical parameters (typical):
Model | Line gauge | Logarithm | Outer diameter (mm) |
HSYPVP-7 | 23AWG | 4 | 8.9±0.5 |
Pour 1. LSZH and other customer needs sheath materials can be used according to customer needs.
2.The above data is for reference only.。
