GYFTS

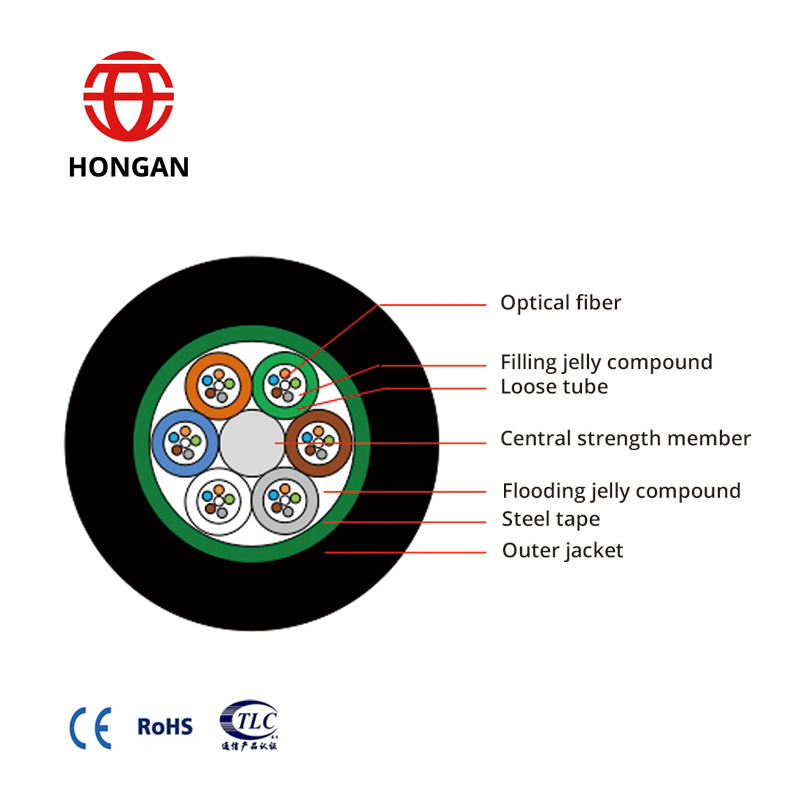

Product Structure:
Product Description:
GYFTS (Loose tubestranding, Non-metal strength member, Flooding jelly compound,Steel-polyethylene adhesive sheath)
Standards:
YD/T901-2009 Outdoor layer stranded opticalcable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
2-30 | 1+6 | 10. 2 | 97 | 600 | 1500 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 10. 2 | 97 | 600 | 1500 | 300 | 1000 | 10D | 20D |
38-60 | 1+6 | 11. 2 | 122 | 600 | 1500 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 11. 2 | 122 | 600 | 1500 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 12.0 | 139 | 600 | 1500 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.8 | 161 | 600 | 1500 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 13.6 | 177 | 600 | 1500 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 14.3 | 195 | 600 | 1500 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 15. 0 | 214 | 600 | 1500 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 15. 7 | 233 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
